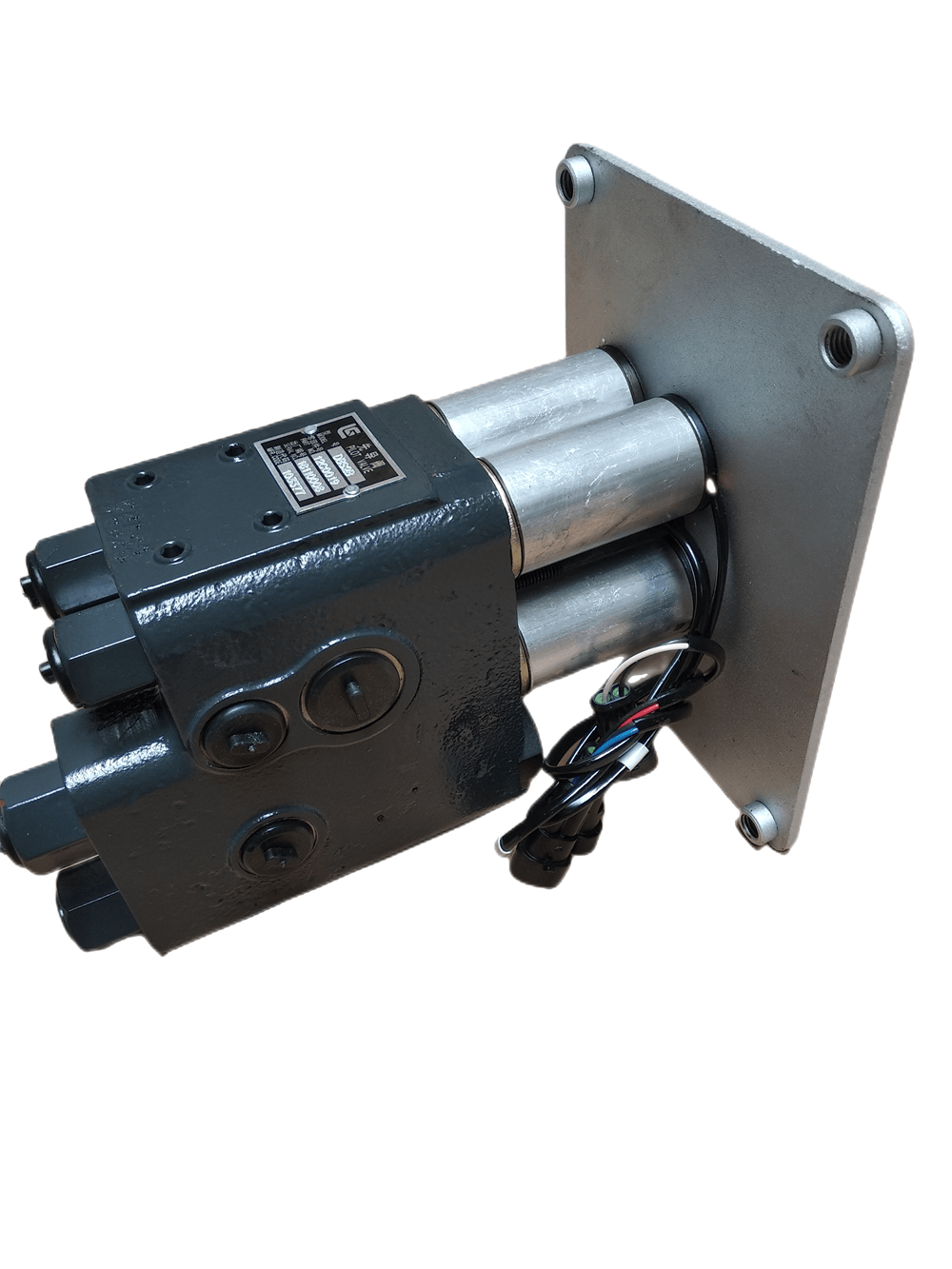

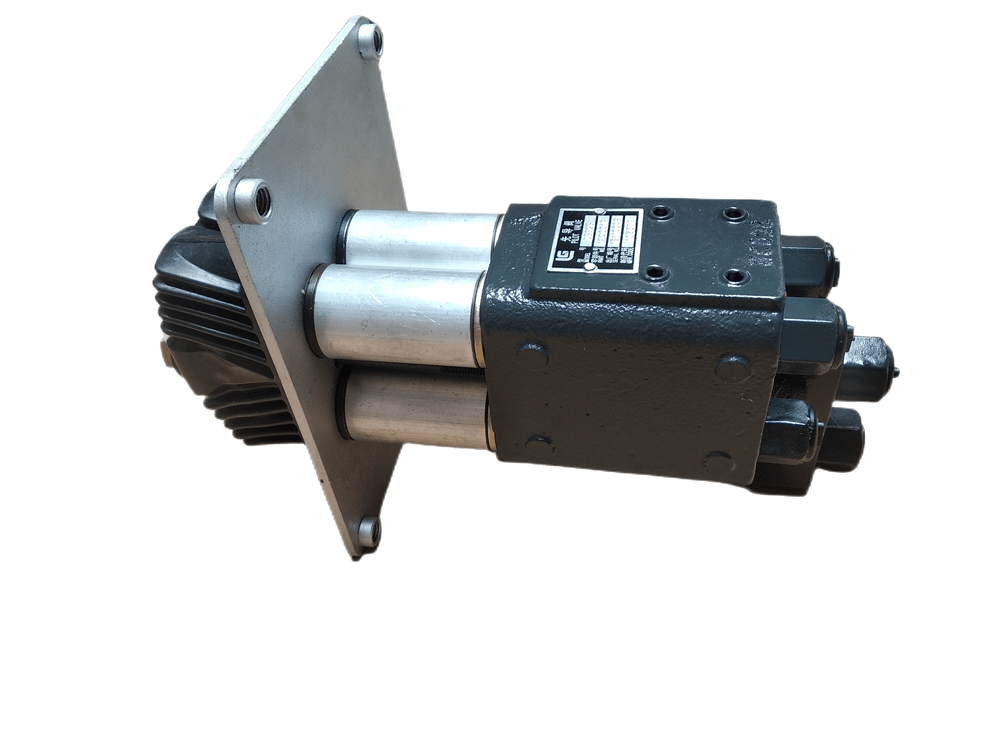

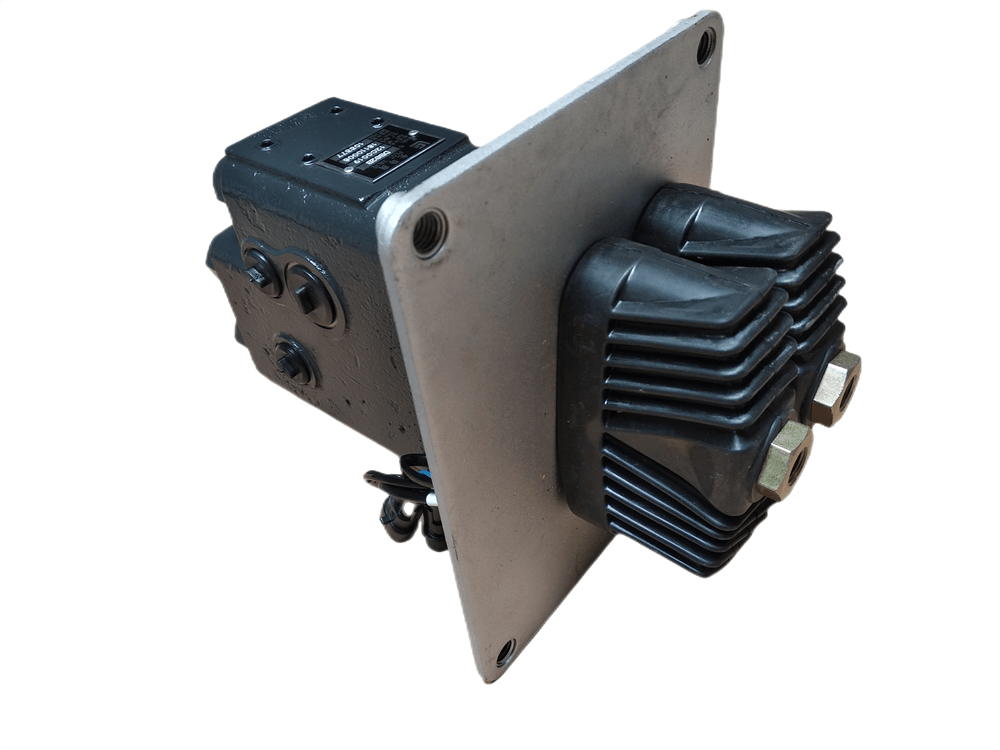

Loader Pilot Valve for Liugong 862H 856H 12C0019

  • Loader Pilot Valve for Liugong 862H 856H 12C0019
  • Loader Pilot Valve for Liugong 862H 856H 12C0019
  • Loader Pilot Valve for Liugong 862H 856H 12C0019
  • Loader Pilot Valve for Liugong 862H 856H 12C0019

Loader Pilot Valve for Liugong 862H 856H 12C0019

    Unit Price: 250~300 USD
    Min. Order: 1 Piece/Pieces
    Packaging: packed in cartons
    Productivity: 200 pieces per month
    Brand: Liugong
    Transportation: Ocean,Land,Air,Express
    Place of Origin: China
    Supply Ability: 200 pieces per month
    Certificate: ISO9001
    Port: Guangzhou,Shanghai,Tianjin

Basic Info

Model No.: 12C0019

Product Description

Loader Pilot Valve for Liugong 862H 856H,part number:12C0019
Specification for measurement and adjustment of loader pilot valve pressure:
1. Measurement of pilot pressure
Take Liugong 862H loader as an example, the multi-way valve is installed on the front frame, and the pilot pressure can be measured at the pilot control end when the multi-way valve is in the descending position. The pilot control end of lifting and receiving bucket corresponds to the position in front of the multi-way valve (bucket side), and the pilot control end of dropping and tipping bucket corresponds to the position behind the multi-way valve (cab side). When measuring the oil temperature is: 45 ~ 55℃, the public number of wisdom manufacturing concept, focusing on the construction machinery manufacturing industry related theoretical knowledge sharing.
Put the working device down on the ground, pull the hand brake, and use wooden blocks or stones to tighten the tire wedge. Turn off the engine, control the joystick 10 times, steering wheel 5 times, release the remaining pressure of the hydraulic oil in the pipeline.
1) Connect test tools
Step 1: Install pressure gauge connector B together with tee connector D.
Step 2: Remove the descent control tube.
Step 3: Tighten tee joint D to descent control joint and connect with descent pilot control pipe.
Step 4: Tighten the pressure tube C connector to the tee connector D.
Step 5: connect an oil pressure gauge G with a range of 0 to 6MPa to pressure gauge C.
2) Start the engine, place the pilot valve handle in the descending position, descending to the extreme position, and gradually increase the throttle to the maximum (2200 RPM). Observe the steady pressure value of the oil pressure gauge, that is, the current pilot control pressure of the hydraulic system of the loader working device under test.
3) Compare the measured value with the appraisal standard value, and adjust or take other diagnostic measures according to the fault diagnosis process. After the test is completed, wipe the leakage hydraulic oil during the process of disassembling and assembling the test tool.
2. Pilot pressure adjustment
The pilot pump relief valve is installed on the pilot pump of the steering pilot twin pump. Loosen the lock nut and turn the regulating screw.
◆ Increase the pressure and turn clockwise.
Reduce the pressure and turn counterclockwise.
★ The adjusting quantity of adjusting screw is about 1MPa per rotation.
★ Female locking force rejection: 35±5N.m.
Loader Hydraulic components are divided into the following parts:hydraulic gear pump、loader multi way valve、Loader variable speed pump、loader pilot valve、Loader full hydraulic steering gear、Flow amplification valve、Variable speed control valve、Loader hydraulic Cylinder、Hydraulic oil filter、Screw-in, cartridge-style Hydraulic relief valve、Flow amplification valve、Loader pressure reducing valve、Loader hydraulic cylinder、loader steering control valve。


Loader Pilot Valve for Liugong 862H 856H 12C0019Loader Pilot Valve for Liugong 862H 856H 12C0019Loader Pilot Valve for Liugong 862H 856H 12C0019
